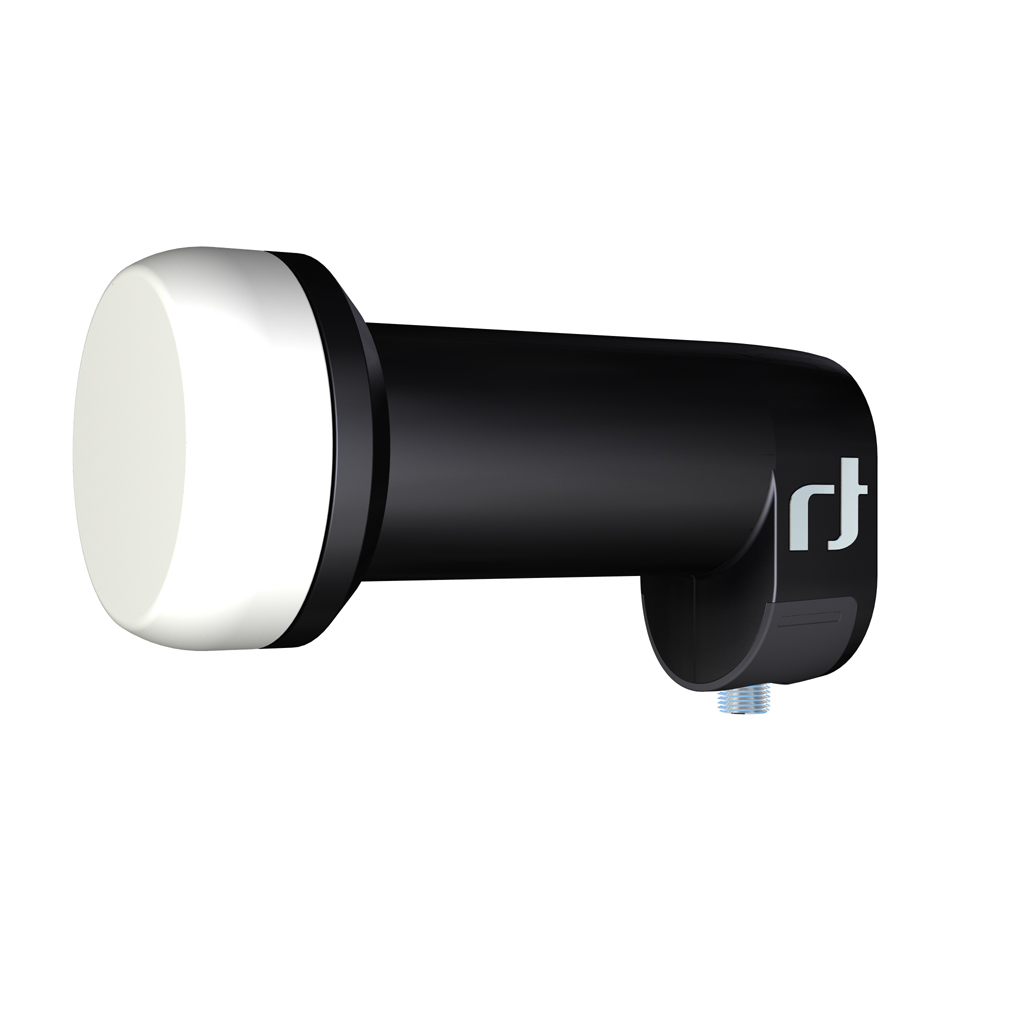

Lnb 0.2db single Black Ultra inverto

Lnb inverto Black Ultra 0.2db High Gain single.

Low Band Input Frequency Range 10.7 ~ 11.7 GHz
Low Band Output Frequency Range 950 ~ 1950 MHz
Low Band LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
High Band Output Frequency Range 1100 ~ 2150 MHz
High Band LO Frequency 10.6 GHz
Noise Figure 0.2 dB Typ. (0.7dB Max.)
LO Initial Accuracy +/- 1.0 MHz Max.
LO Temperature Drift +/- 3.0 MHz Max.
Phase Noise (@ 10 kHz) – 90 dBc / Hz Max.
Conversion Gain 60 dB Min.
Gain Ripple (Over 26MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band) +/- 4 dB Max.
Image Rejection 40 dB Min.
1 dB Compression Point (@ Output) 0.0 dBm Min.

Output VSWR 2.0 : 1
In-Band Spurious – 60 dBm Max.
Current Consumption 120 mA Max. @ 11 ~ 20V
Operating Temperature – 30 °C ~ + 60 °C
Output Impedance 75 Ω
Output Connector F-Type (Female)
Weight 151 g
