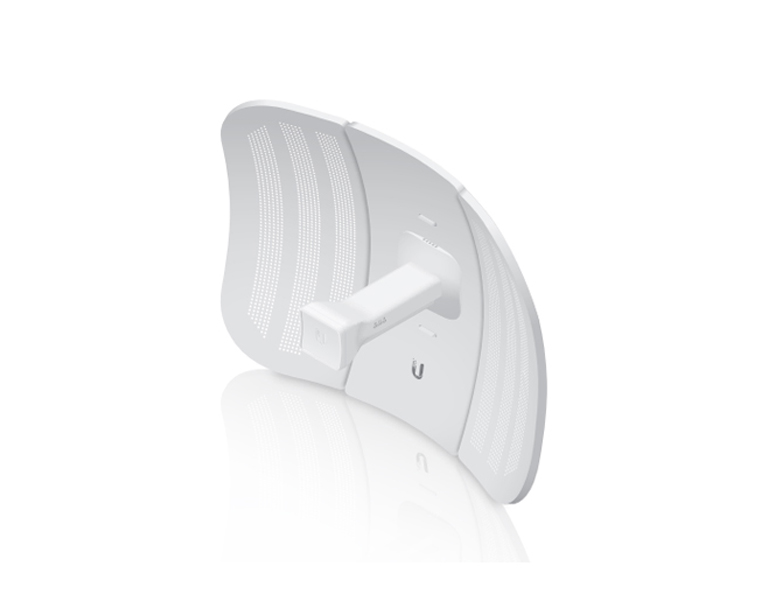

Κεραία Wi-Fi Ubiquiti 5GHz AirMax LiteBeam M5 23dBi LBE-M5-23

The Ubiquiti LiteBeam M5 is the latest evolution of a lightweight and compact, outdoor wireless broadband CPE (Customer Premises Equipment) from Ubiquiti. The LBE-M5-23 was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license-free 5 GHz frequency range and features high performance of up to 100+ Mbps in real outdoor throughput and an incredible range of up to 30+ km.

UBIQUITI LiteBeam M5 airMAX CPE Access Point LBE-M5-23, 23dBi, 5GHz

Τεχνικά Χαρακτηριστικά:
Operating Frequency: 5150 – 5875 MHz
Networking Interface: (1) 10/100 Ethernet Port
Antenna Gain: 23 dBi
Max. Power Output: 25 dBm
Max. Power Consumption: 4W
Power Supply: 25V, 0.2A PoE Adapter
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 176.86 N @ 200 km/h (39.76 lbf @ 125 mph)
ESD/EMP Protection: ±24kV Contact / Air
Shock and Vibration: ETSI300-019-1.4
Operating Temperature -40 to 70° C
Operating Humidity: 5 to 95% Non condensing
Dimensions 347 x 260 x 208 mm
Weight: 0.7 kg

Περιεχόμενα συσκευασίας
LiteBeam M5 Antenna Feed
Reflector Antenna
Pole Mount kit
PoE adapter (25V 0.2A)
Quick start guide
