Θερμοστάτες-Υδροστάτες

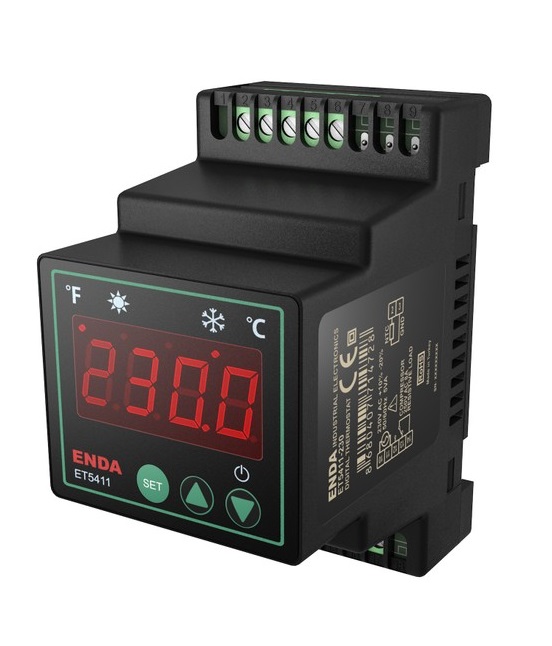

Θερμοστάτης ράγας -60 έως 150C 230V ET5411 ENDA
52,00€
ET5411
Άμεση παραλαβή/Παράδοση (από το κατάστημα)
Θερμοστάτης ράγας απο -60C° έως 150C° . Τροφοδοσία 230V ac. Θερμοστιχείο NTC (περιλαμβάνεται). ET5411 ENDA
| Ambient/Storage Temperature | 0…50 ºC / -25…70 ºC |
| Relative Humidity | 80% relative humidity for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C |
| Protection Degree | According to EN 60529 Front panel: IP65, Rear panel: IP20 |
| Height | Max. 2000m |
| Electrical Characteristics | |
| Supply | 230V AC +10% -20% 50/60Hz or 12/24V AC/DC ±10% |
| Power Consumption | 5VA |
| External Connections | Screw-terminals |
| Scale | -60.0…150.0 °C |
| Sensitivity | 0.1°C (selectable 0.1 ºC or 1 ºC) |
| Accuracy | ± 1% (of full scale) |
| Output | |
| Relay | 8A model: 250V AC, 8A (for resistive load), NO+NC 1/2hp 240V AC (for inductive load) 16A model: 277V AC, 20A (for resistive load), NO 2hp 250V AC (for inductive load) |
| Life Expectancy | 8A model: Mechanical 30.000.000 operations (under no load), Electrical 100.000 operations (8A at 250V AC, resistive load) 16A model: Mechanical 10.000.000 operations (under no load), Electrical 100.000 operations (20A at 277V AC, resistive load) |
| Control | |
| Control Type | Single set-point |
| Control Algorithm | On-Off |
| Hysteresis | Adjustable between 1 and 20.0 °C |
| Housing | |
| Mounting Method | TH35 rail mounting |
| Dimensions | W54xH94xD68 mm |
| Weight | Approx. 190g (after packaging) |
| Enclosure Material | Self extinguishing plastics |
