Ασφάλεια κυλινδρική 20A 10X38 gl 1000V DC 491635 df Electric

Ασφάλεια κυλινδρική 10×38 gl 20A 1000V DC.

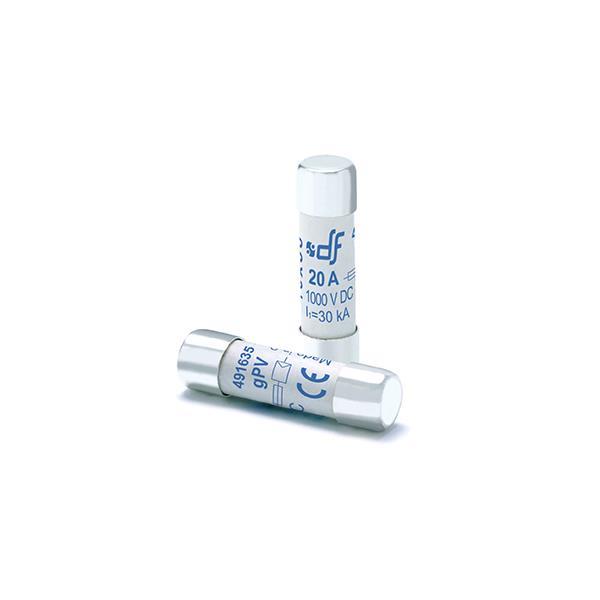

gPV 10×38 are cylindrical fuse-links from DF Electric have been developed to offer a compact, safety and economic protection of photovoltaic modules (array protection) with voltages up to 1.000/1.100V DC. They provide protection against overloads as well as short-circuit (gPV class according to the requirements of IEC60269-6 and UL248-19 Standards). Made with ceramic tube with high withstand to internal pressure and thermal shock, that allows a high breaking capacity in a reduced physical space. Contacts are made in silver plated copper and melting elements are made in pure silver in order to avoid the aging and thus keep unalterable the electric characteristics. For these fuse-links we recommend the utilization of PMX fuseholders.
