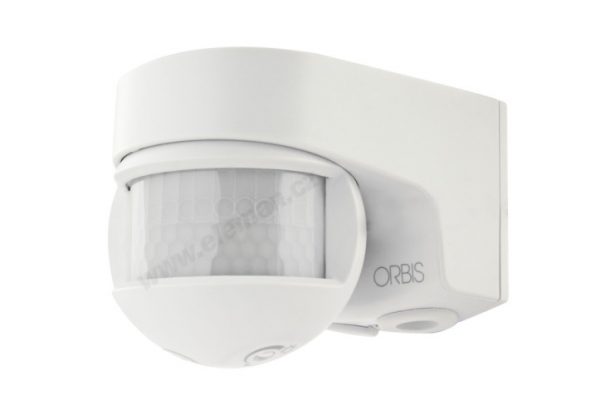

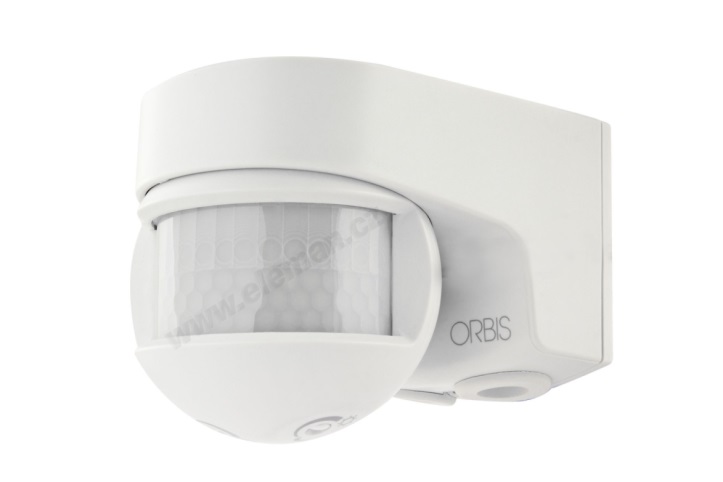

Ανιχνευτής κίνησης επίτοιχος 200° . Κινητή κεφαλή. Ρύθμιση χρόνου & φωτεινότητας. Εμβέλεια 12m. ΙΡ44 230V/5A.
Voltage rating 230 V a.c.
Frequency rating 50 Hz
Breaking power 5 A / 230 Vc.a. ~cos ϕ = 1.
Own consumption 5 VA (approximately 1 W)
Luminosity range 5-2000 Lux
Operating temperature -20° C to + 40° C
Maximum recommended loads
Incandescent lamps: 1000 W
Fluorescent: 250 VA
Low-voltage halogen: 500 VA
Halogen(230 Va.c.): 1000 W
Low-consumption lamps: 200 VA
Led: 200 VA
Timing Approximately 3 sec to 30 min.
Detection angle 200º
Detection field
Frontal: 12 m at 20ºC
Side: 8 m at 20º C
Protection class II in accordance with EN 60335 under correct installation condictions.
Protection type IP 55 in accordance with EN 60529
